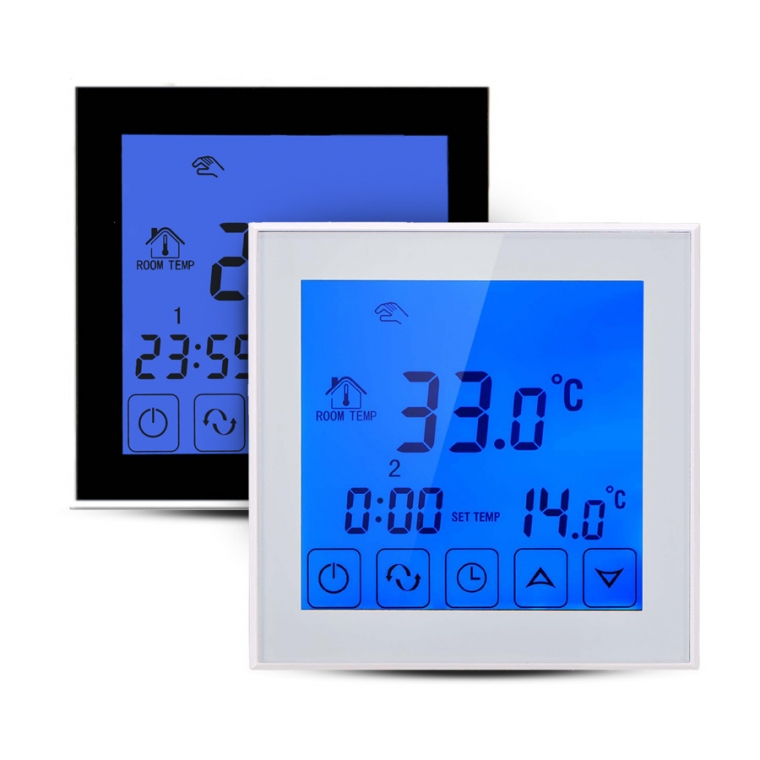

TopLo 7 Day Programmable Touch Screen Thermostat

Programming

• Choice of 7 day, 5/2 day programmable or non-programmable (installer selectable)
• 4 time and 4 temperature settings per day
• pre-programmed or personalized schedule
• Energy savings up to 33%

Display

• Blue, lighted display for easier low-light viewing
• Larger, easy-to-read character size
• Extra-large touch keys for easy operation
• Clean, uncluttered touchscreen display provides easier navigation

Comfort & Convenience

• Intuitive menu-driven set-up, programming and operation with audio prompt to confirm touchscreen entries
• Permanent program retention during power loss
• Setpoint temperature “limited range” capable
• Enhanced touchscreen security prevents tampering.
• Room temperature display can be recalibrated up to +/- 5°C
• Can switch upto 16 amps (230v)
• Temperature display resolution: 0.5°C
• Temporary temperature override
• C / F temperature format selection
• Air / floor temperature calibration separately
• Available in white, black,granite and silver plastic finishes.
• A / AF/ F models all in one.
• Combination of 3 models.
• A - Air only, with built-in sensor.
• F - Floor only,controls floor temperature.
• AF - Controls air temperature with ability to limit the floor temperature.
• Each thermostat is equipped with built-in sensor and a 3 meter floor sensor. The floor sensor can be extended.

Specifications

• Power supply: 230VAC (120VAC optional)
• Inputs: 2 x NTC10K temperature sensors
• Output: 1 x switch relay(R1)
• Switching capacity: max 16A
• Ambient temperature: -5 °C ~ +45 °C
• Operating RH: 0~95% (non condensing)
• Accuracy: +/- 1 °C for +20 °C
• Dimensions W x H x D (mm):127 x 96 x19
• Backlight life: 5,000 hours.
• Battery type: CR 1220 (Backs up clock only)
• Battery life: > 5years (10 years Maximum)
• Protection degree: IP30

Useful Settings

• Vacation mode (frost protection mode)
• 24hr/12hr clock format selection
• Switching differential setting
• Floor temperature limit
• Hidden menu(press and hold"OFF"for 5 seconds in standby mode)
