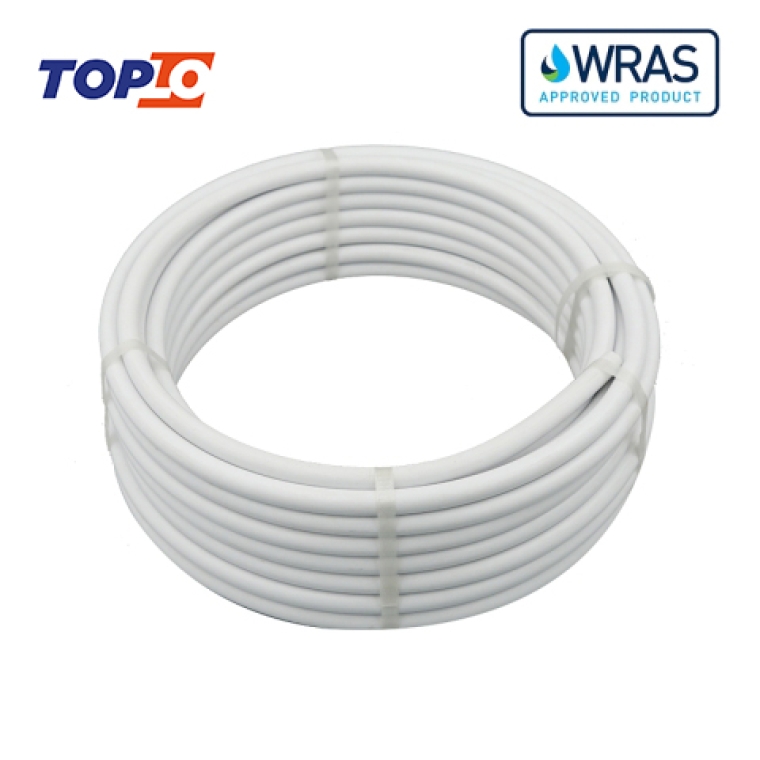

22mm x 2mm Pex BARRIER Pipe - 50M Roll

Our range of premium PEX pipes are manufactured to ISO9001 European standards ensuring outstanding performance & reliability in all types of warm water underfloor heating systems.

The aluminium core provides strength and importantly acts as an oxygen barrier to stop the ingress of oxygen into the system causing premature wear (corrosion) to the manifold. The aluminium layer also makes the pipe form-stable, making it very easy to work with by eliminating spring back for easier installation.

The difference between Pex pipe and EVOH Pert pipe is that PAP can be used in potable water applications and is form-stable.

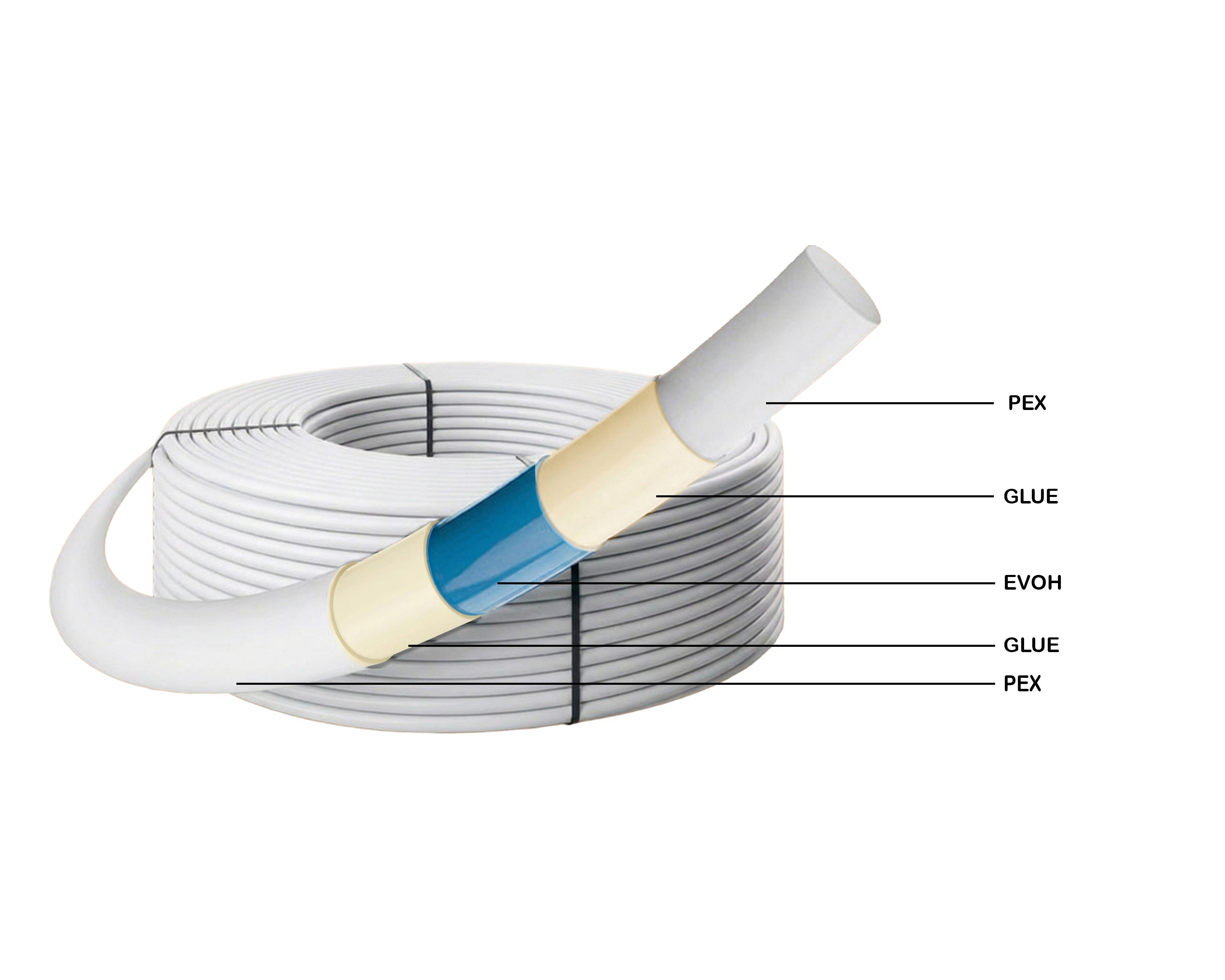

UFH1 5 layer 15mm & 22mm EVOH-PEX PIPE:

The pipe is made of 5 layers, the centre of which is a blue coloured
oxygen barrier that prevents the ingress of air into the system.

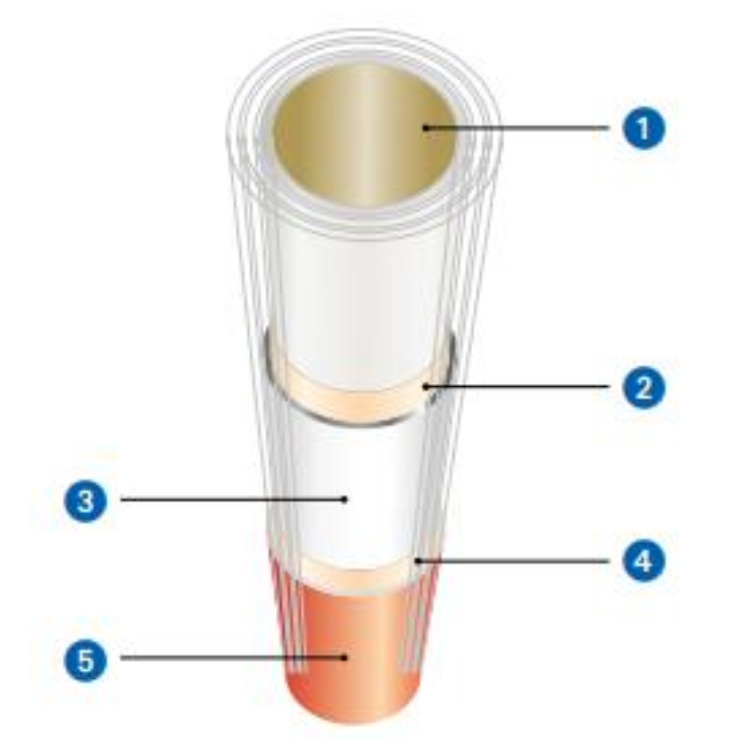

MATERIAL SPECIFICATION:

1. PEX
2. Glue
3. EVOH
4. Glue
5. PEX

Advantages:

• Less fittings, less labour and material costs, less potential leak points
• Safe and non-toxic material with no need for hot works
• Resists corrosion and scale build-up, reducing pin hole leaks and blockages
• Pipe elasticity reduces the chance of burst pipes in freezing conditions
